Cold Tube(Pipe) Drawing Bench:

Cold tube (pipe) drawing bench is a process in which round wire passes through 4 oiled rolls to press the material together and imprint a shape into the wire which is then pulled round a capstan. As the wire passes through the rolls it forces the rolls to turn and imprint the wire throughout the whole cycle of the roll. The full cold tube (pipe) drawing bench includes Drawing machine, Draw dies and draw die design, Straightening process controls, Shot blasting machine for the surface.

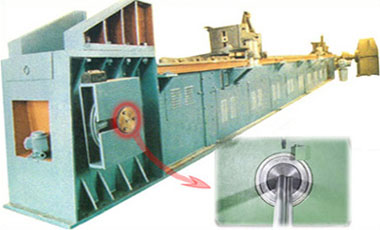

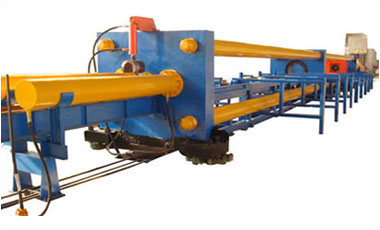

Hydraulic Cold Drawing Bench	Cold Drawing Bench

Model	Cold Drawing Bench									Hydraulic Cold Drawing Bench
	LT5	LT8	LT10	LT15	LT20	LT30	LT40	LT50	LT60	LT150	LT200	LT250	LT300	LT500
Drawing force (N)	5*104	8*104	10*104	15*104	20*104	30*104	40*104	60*104	60X104	15X104	20X104	25X104	30X104	50X104
Max. material dia. (mm)	Ø30	Ø32	Ø40	Ø45	Ø45	Ø50	Ø60	Ø80	Ø80
Max. level-reducing rate (%)	20	30	30	30	30	30	30	30	30
Drawing speed (m/min)	10	10	10	9	9	9	9	9	9	12	12	12	12	12
Max. drawing length (m)	2	4	6	6	8	8	8	8	10	3-18	3-18	3-18	3-18	3-18
Returning speed of the vehicle (m/min)	8	8	10	10	10	10	10	10	60
Electromotor power (kw)	60	60	60	60	60	60	60	60	115	300	400	500	600	1000
Electromotor speed (revolution per minute)	980	980	980	980	980	740	740	740	740
Speed reducer type	JZQ500	JZQ500	JZQ500	JZQ500	JZQ500	JZQ500	JZQ500	JZQ500	ZS1650
Total weight (kg)	6000	8000	11000	15000	22000	31000	40000	45000	45000

Finished products (cold rolled profile wire rod):
All of the products mentioned in this catalogue can be cut and straightened to lengths specific to you. The only sizes we do not cut to length are round wire sizes up 16 mm.
Profile and Round wire can be cut in sizes 10 mm-3600 mm
Profile Wire Twist
We can also produce Profile wire twisted. Containing as many twists as you like.

cold rolled profile wire rod-1	cold rolled profile wire rod-2	cold rolled profile wire rod-3	cold rolled profile wire rod-4
