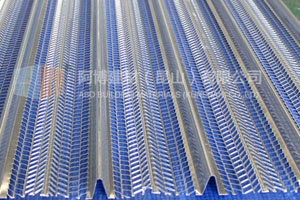

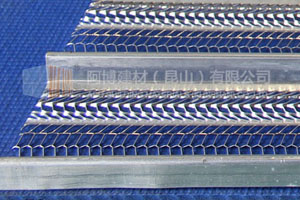

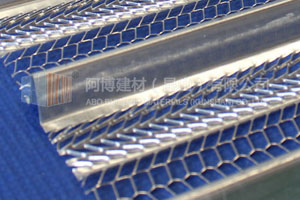

Rib Lath (Rib Expanded Metal Lath) is a kind of expanded metal from galvanized steel or 304 stainless steel. Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. Rib Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.

rib lath rib lath
Spray lath Galvanized high ribbed lath
rib lath rib lath
7/8 Self-furred rib lath Metal rib forming lath

Type Thickness SW KG/M2 Size Type Thickness SW KG/M2 Size
RLAG30 0.30 3.5x13 1.27 610x2500 RLAG30 0.30 12x8 1.2 610x2500
RLAG35 0.35 3.5x13   610x2500 RLAG35 0.35 12x8   610x2500
RLAG40 0.40 3.5x13   610x2500 RLAG40 0.40 12x8   610x2500
RLAG50 0.50 3.5x13 2.12 610x2500 RLAG50 0.50 12x8 2.0 610x2500
Type Thickness SW KG/M2 Size Type Thickness SW KG/M2 Size
RLAG30 0.30 3.5x13 1.27 750x2500 RLAG30 0.30 5.5x8 1.37 710x2500
RLAG35 0.35 3.5x13   750x2500 RLAG35 0.35 5.5x8 1.60 710x2500
RLAG40 0.40 3.5x13   750x2500 RLAG40 0.40 5.5x8 1.83 710x2500
RLAG50 0.50 3.5x13 2.12 750x2500 RLAG50 0.50 5.5x8 2.29 710x2500
