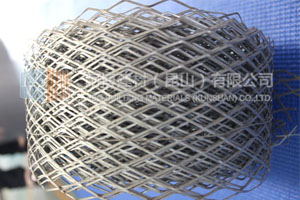

Brickwork reinforcing mesh/Coil mesh:

Brickwork reinforcing mesh, also called coil mesh, brickwork reinforcement mesh, is embedded in the normal thickness of a brickwork joint, the mesh gives brickwork increased resistance to tensional stresses to reduces the detrimental effects of vibration and changes of temperature. The coil mesh is easily incorporated into mortar course, coiled for ease of handing.
Usually it is fixed into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.
Galvanized steel, stainless steel
Width: 65mm, 100mm, 175mm, 225mm, 300mm
Length: 20m
concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.

angle bead (corner bead) angle bead (corner bead)
Block work expanded mesh Brickwork reinforcing mesh /coil mesh
Model SWD*LWD Length Coil width
BR100 15mm*25mm 20m 100mm
BR150 20m 150mm
BR200 20m 200mm
BR305 20m 300mm
