Plaster stop machine:

Plaster stop machine is the latest type of expanded metal mesh machines designed by our company recently. This machine features high yield, low noise, environment protection and easy operation. The required floor space of whole line is 36 square meters, and the whole line is usually 10 to 12 meters long. This production line is mainly composed of four parts: decoiler, expanded main machine, roller profiling machine, and receiving unit.

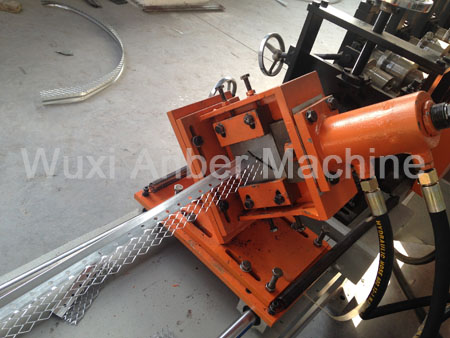

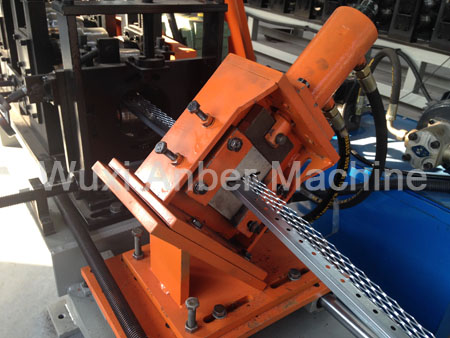

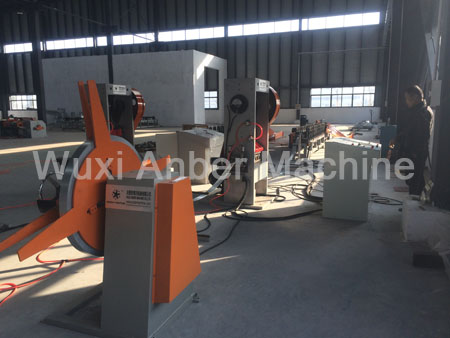

Plaster stop bead machine	Plaster stop bead production line	Expanded stop bead machine

Main parameter:
Plaster stop machine is the latest type of expanded metal mesh machines designed by our company recently. This machine features high yield, low noise, environment protection and easy operation. The required floor space of whole line is 36 square meters, and the whole line is usually 10 to 12 meters long. This production line is mainly composed of four parts: decoiler, expanded main machine, roller profiling machine, and receiving unit.
Decoiler size: 960*950*1270mm
Decoiler Weight: 400kg
Inner diameter: 470mm - 540mm
Mesh opening size: 25mm×10mm or according to customer's requirement
Punching force: 6T
Material thickness: 0.4-0.7mm galvanized steel
Mold material: Cr12, 1 full set or according to customer's sample
Hydraulic pressure: 5MPa
Total machine weight: about 4.5T
Layout size of the plaster stop line: 2100*9800*1700mm
Hydraulic oil type: 32# hydraulic oil
Plaster stop bead length: max. 3m
