Reinforcing mesh welding Machine:

The ABE series reinforcing mesh welding machine consist of the shelf for releasing line, warp-rectified mechanism, mesh welding machine, mesh cutting machine and the shelf for mesh falling materials. It can weld Ø2 to Ø12 cold-rolled reinforcing steel with rib, steel wire as well as stainless steel wire. It adopts hydraulic pressure transmission. PLC can compile procedure controlling in order to make the distance of the mesh check accurate and operate conveniently. It can adopt once pressurization, once electrify or once pressurization, three times electrify while welding. The disk of warp release the line, warp rectifying, weft increasing materials, mesh welding, mesh cutting the falling net for the fixed length. All the actions go on successively and automatically. Many types design can satisfy different requirements. ABE series are machinery, they adopt electrical machinery that can change frequency to control electrode servo, electrical machinery control the pulling mesh. It adopts Siemens PLC.

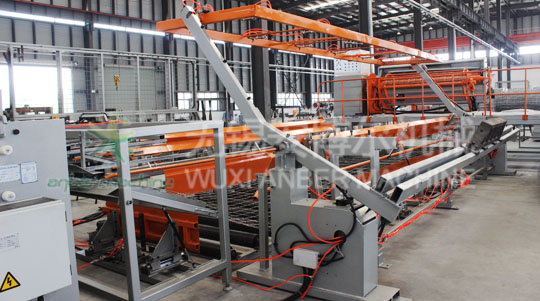

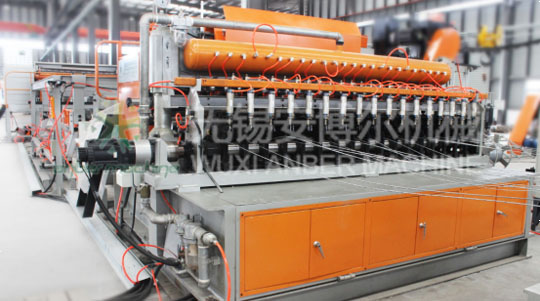

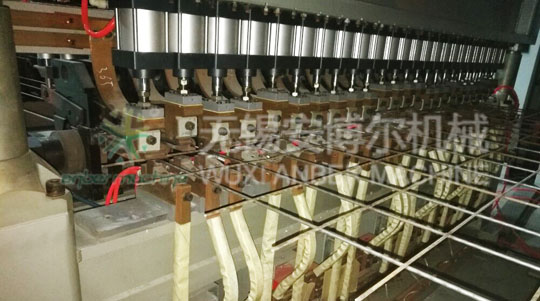

Reinforcing mesh welding machine from pre-cut	Line Wire accumulator for Reinforcing mesh welding machine - from coil	Welding system of the reinforcing mesh machine	Mesh Coiling Machine of the reinforcing mesh machine

Model	ABE-3/6-2500	ABE-5/12-2500	ABE-5/12-3300
Diameter	Ф3-Ф6mm	Ф5-Ф12mm	Ф5-Ф12mm
Max mesh width	2500mm	2500mm	3300mm
Welded no.	24	24	32
Capacity of transformer	1000KVA	1600KVA	16×125KVA
Line wire space	50-200mm	100-300mm	100-300mm
Cross wire space	50-200mm	100-300mm	100-300mm
Max. welding frequency	55-70 Times/min	55-70 Times/min	55-70 Times/min
Utilization factor of transformer	30%	30%	30%
Work pressure of pneumatic system	≤0.8Mpa	≤0.8Mpa	≤0.8Mpa
Pressure of cooling water	0.2Mpa-0.3Mpa	0.2Mpa-0.3Mpa	0.2Mpa-0.3Mpa
Consumption of compressed air	≥3M3/min	≥3M3/min	≥3M3/min
Load mode of line wire	Pre-cut; straightness ≤3mm/1000mm	Pre-cut; straightness ≤3mm/1000mm	Pre-cut; straightness ≤3mm/1000mm
Load mode of cross wire	Pre-cut; straightness ≤3mm/1000mm	Pre-cut; straightness ≤3mm/1000mm	Pre-cut; straightness ≤3mm/1000mm
