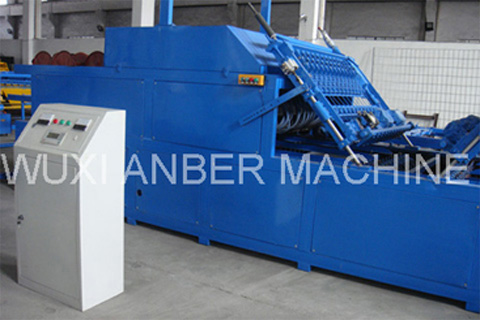

3D panel welding machine:

3D panel welding machine which adopts air cylinder or step motor as driver and controlled by PLC control system. The 3D panel producing process is: insert the wire into the EPS board →control the position of the wire mesh to weld → cut.
This 3D panel welding machine is of high automatic manufacturing level, low lack welding rate, productive efficiency, strong welding pressure and even welding strength. The finished products (3D panels) are in good quality and cost low.
Also, We will try our best to meet customers' special requirements.

3D panel machine	3D pannel wire mesh welding machine	EPS-3D-panel-welding-machine
3D-panel-welding-machine	3D-panel-mesh-welding-machine

Input voltage			AV380V  50HZ
Air source allocation			3 Cubic meter/MIN, 0.6MPa
Rated electrical power			75KVA
Applicable range	Core panel thickness		30mm-100mm
	Truss wire configuration		Single or double sided mesh ,different densities of truss wires
production standard	Standard Sandwich panel	Llength	3000mm
		Width	1220mm
	Nonstandard sandwich panel		The length according to your requirement ≤4500mm
material characteristic	Welded wire material		1.5mm-2.5mm cold-drawing low-carbon steel wire
	Core panel material		EPS board & XPS board
	Gridding space of mesh		50mm*52mm
product efficiency			seeing the attached table
Lack welding rate			≤5%
Welding strength			(single point)≥330N
Overall dimension (L*W*H)			13500*1800*1700mm
Weight			4000kg
