Straight line Wire drawing Machine:

The straight line wire drawing machine is applicable to high/low carbon steel wire, stainless steel wire, non-ferrous metals wire. Mechanical features include the drawing capstan undergoes the hardness spray welding and grinding treatment as well as dynamic balance verification. With internal water cooling and external fan cooling systems; the drawing die base can be drawn out, easy for replacement, and equipped with internal water cooling system; with the protection devices including the safe gate, breaking stop, and emergency stop, the driving gear in the gear box undergoes the high hardness grinding treatment, long in service life and low noise.

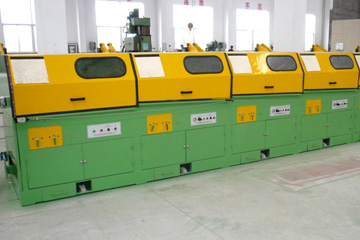

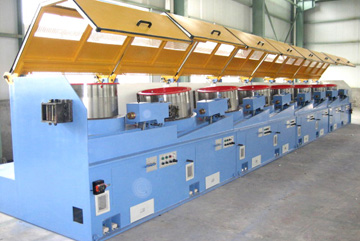

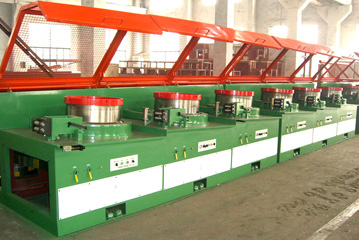

Deadbeat wire drawing machine Wire drawing line P coating line
Deadblock continuous wire drawing machine Straight type wire drawing machine Intermediate wire drawing machine

Items Unit LZ1200 LZ900 LZ800 LZ700 LZ600 LZ560 LZ500 LZ450 LZ400 LZ350 LZ300
Capstan dia. mm 1200 900 800 900 600 600 500 450 400 350 300
Draw passage times 5-9 5-9 5-9 2-9 2-12 2-12
2-11
2-11 2-11 2-11 2-11
Incoming dia. mm 18.0-14.0 14.0-9.0 12-10 10 8 6.5 5.5 5 4.2 3.6 2.8
Outgoing dia. mm 9.0-6.0 6.0-4.0 3.2-2.2 2.2 1.6 1.3 1.2 1 0.75 0.6 0.5
Total compressibility
% 82-85 82-85 82-85 82-85 84-86 84-86 89.4 90 90 90 90
Average compressibility % 20
Max. Wire drawing speed m/s 6 7 8 12 12 15 15 16 20 20 25
Single motor power KW 110-160 90-132 55-110 45-90 30-75 22-55 22-45 15-37 11-30 11-22 7.5-18.5
