Annealing wire drawing production line:

Annealed steel wir eis widely used in wrapping, chemical, mine, etc. There are two kinds of Annealing wire drawing line, as listed in the dollowing:
Annealing wire drawing process 1:

1. Un-coiler----uncoil the wire from the decoiling machine/decoiler
2. Wire descaler/ Wire decaling machine----remove the dust and rust from the wire
3. Dry wire drawing machine-----draw wire from 6mm to 2.7mm (6mm →5.1mm→4.3mm→3.7mm→3.2mm→2.7mm)
4. 3 tanks annealing furnace-----heat the wire to 700°C for 6 hours, and don't open the cover in the heating process
5. Water wire drawing machine (9 moulds) -----after the wire has been cooled around 6~10 hours, then draw it to 1.2mm~1.4mm in the water wire drawing machine
6. Discharging machine-----load down the wire coil
7. Heating-----heat the wire for 4 hours to make it softer

Annealing wire drawing process 2:

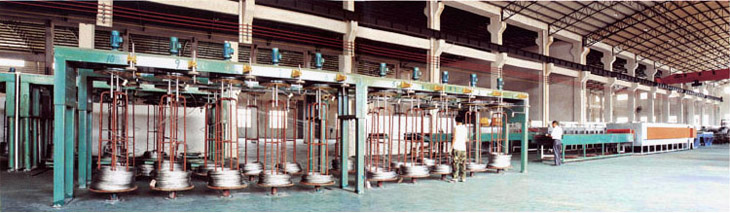

Draw the wire continuously as in the follqing picture.

annealing wire drawing line
