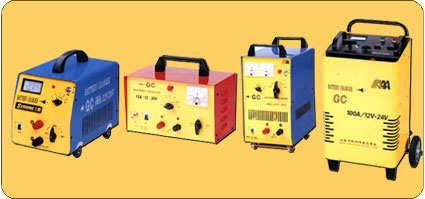

Rectifying Battery Charger:

Our battery charger, being a rectifying device to convert alternating current into direct current, is to be used specifically by vehicle repair shops, tractor stations, battery charging stations, motorcycle repair shops, factories and mining districts for the purpose of replenishing electrical power of batteries. The charger can also be employed as a direct current source for small scaled electrolysis and electroplating projects. Since the charger has the merits of high efficiency and excellent performance, it is a better sharing device for choice.
We can design charging devices to meet our customers various requirements on input voltage and frequency. When ordering, please indicate input voltage frequency.

Model Input voltage Charging voltage Charging current Dimention(mm) Weight(kg)
GC-15A/12V/24V Single-phase220v±10%50HZ-60Hz 12V/24V 5A-15A 280x210x240 8.5
GC-20A/12V/24V 12V/24V 5A-20A 340x220x260 10
GC-30A/12V24V 12V/24V 5A-30A 340x240x260 14
GC-50A/12V/24V 12V/24V 5A-50A 380x280x280 20
GC-100A/12V/24V 12V/24V 5A-100A 500x300x730 55
GC-150A/12V/24V 12V/24V 5A-150A 500x300x730 68
GC-200A/12V/24V 12V/24V 5A-200A 500x300x730 85
GCA-30A/0-85V unlimited, 0-85V 0-30A 520x400x820 95
GCA-50A/0-85V 0-85V 0-50A 580x460x900 120
GCF-60A/0-110V Three-phase
0-110V 0-60A 900x500x1000 140
GCF-100A/0-128V 0-128V 0-100A 1000x550x1000 170
GCF-200A/0-75V 0-75V 0-200A 1000x550x1000 190
