AC ARC Welder	DC ARC Welder	Point welder
Butt welder	Rectifying Battery Charger

Point welder:

The brickwork reinforcement production line, also named coil mesh machine, the full production line includes: 1 set of decoiler----1 set of expanded main machine-----2 sets of recoiler (1 for the coil mesh, one for the unused steel belt)

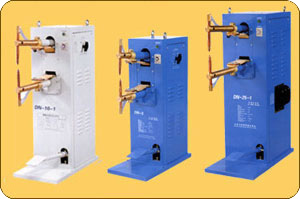

DN-SERY POINT WELDER AKD- SERY POINT WELDER The DN sery point welder is a foot drivepoint welder. It is mainly use to point weld low carbon steel plates, and weld two plate materials or line materials if you grasp good welding technics, you can point-weld some piece of nonferrous metal and alloy.

Model	Rated power (KVA)	Input voltage (V)	Second empty load voltage (v)	Second abjustable class number	Max welding thickness of low carbon steel(mm)	Max welding diameter(Ø) of low carbon steel bar(mm)	Distance of electrode arm(mm)	Moving distance of up electrode(mm)	Welding production rate(mm)	Cooling water consumption (L/hours)	Weight (kg)	Dimention (cm)
DN-5	5	220/380	1.09-1.8	6	0.2+0.2 -1.8+1.8	4+4	160	20	250	80	60	64x34x95
DN-10	10	220/380	1.5-3	6	0.3+0.3 -2+2	5+5	160	20	250	100	70	64x34x95
DN-10-1	10	380	1.5-3	6	0.3+0.3 -2+2	5+5	160	20	350	100	78	74x34x95
DN-16	16	380	1.6-3.2	6	0.5+0.5 -0.3+3	6+6	200	20	250	120	100	70x38x108
DN-16-1	16	380	1.6-3.2	6	0.5+0.5 -3+3	6+6	200	20	400	120	115	85x38x108
DN-25	25	380	1.76-3.52	8	0.8+0.8 -4+4	8+8	200	20	250	120	130	95x46x118
DN-25-1	25	380	1.76-3.52	8	0.8+0.8 -4+4	8+8	200	20	500	120	150	120x46x118
AKD-5	5	220/380	1-2	Classiess	0.2+0.2 -2+2	4+4	160	20	250	100	55	64x34x95
AKD-10	10	220/380	1.6-3.2		0.3+0.3 -2.5+2.5	5+5	160	20	250	120	65	64x35x95
AKD-10-1	10	220/380	1.6-3.2		0.3+0.3 -2.5+2.5	5+5	160	20	350	120	73	74x34x95
AKD-16	16	220/380	1.8-3.6		0.5+0.5 -3+3	6+6	200	25	250	140	95	70x38x108
AKD-16-1	16	220/380	1.8-3.6		0.5+0.5 -3+3	6+6	200	25	400	140	110	85x38x108
AKD-25	25	380	2-4		0.8+0.8 -4+4	8+8	200	25	250	150	120	95x46x118
AKD-25-1	25	380	2-4		0.8+0.8 -4+4	8+8	200	25	500	150	140	120x46x118
AKD-40-1	40	380	2.3-4.6		1+1 -4.5+4.5	10+10	250	25	600	200	170	130x46x118
