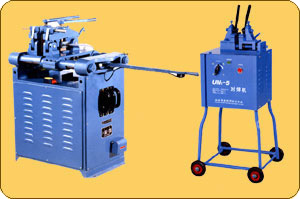

Butt welder:

Model Rated capacity
Second empty load voltage
Max weld area
(low carbon steel)
Jam distance Max welding pressure Weight
UN1-5 5 KVA 220V/380V 1.52V-3.9V Ø1-Ø5 mm 20 mm 18 kg 70 60x40x80
UN1-7 7 KVA 220V/380V 1.52V-4.22V Ø1.5-Ø6 mm 20 mm 18 kg 80 60x40x80
UN1-16 16 KVA 380V 1.6V-3.2V Ø2-Ø8 mm 30 mm 35 kg 100 50x40x90
UN1-25 25 KVA 380V 1.76V-3.52V Ø4-Ø16 mm 35 mm 800 kg 150 135x46x100
UN1-75 75 KVA 380V 3.52V-7.04V Ø8-Ø26 mm 80 mm 3000 kg 380 148x52x110
UN1-100 100 KVA 380V 3.8V-7.6V Ø10-Ø32 mm 80 mm 4000 kg 420 158x56x115
