Single barbed wire machine:

The barbed wire machine is used to produce the single barbed wire. The raw material shall be in conformance with GB/T343-94, the standard of thermally galvanized low-carbon steel wire for general use. The main wire can be middle carbon wire, but the barbed wire only can be low carbon wire. Its products are widely used in fence, railway, highway and agriculture & stockbreeding fields.
The Model CS-B single wire machine basically consists of two main systems, which are prickle knitting system and wire collecting system and three steel wire feeding wheels are facilitated at the same time. It can be operated flexibly and performs consistently and reliably, and can be calculate the QTY by electric counter, it is the unique prickly steel wire manufacturing equipment in China.

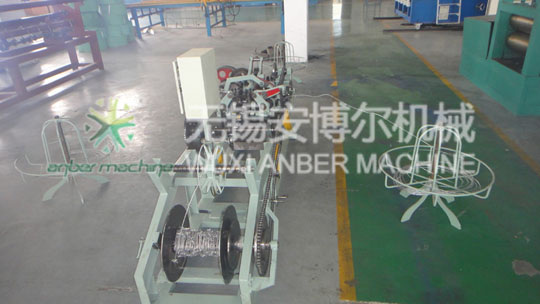

Barbed wire machine Single barbed wire machine CS-B single barbed wire machine

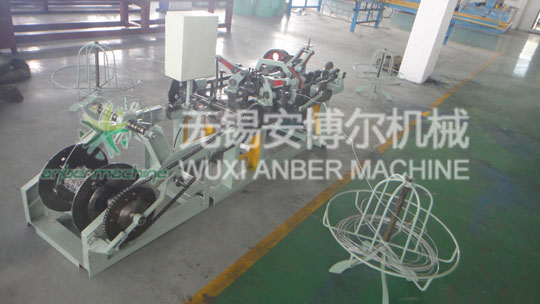

Barbed wire machine Single barbed wire machine CS-B single barbed wire machine

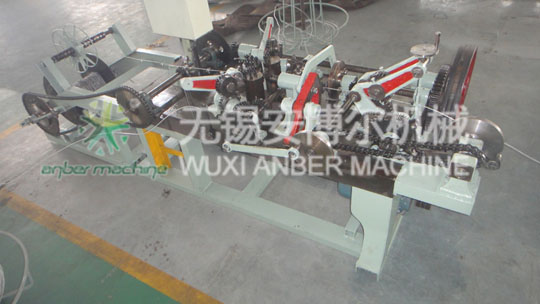

1). CS-B type barbed wire machine
SN
Item
Unit
Parameter
1
Motor
Model
Y100L2-4, 2.2kw
2
Speed of transmission shaft
r/min
357
3
Main wire feeding speed
time/min
119
4
Main machine size
mm
1900×1300×980
5
Recoiling part size
mm
1800×750×750
Remark: special requirement can be according to both parts' agreement.
2). Barbed wire specification
SN
Item
Unit
Parameter
1
Barbed space
mm
50, 80, 100
2
Main wire diameter
mm
2.2-3.5
3
Barbed wire diameter
mm
1.8-2.2

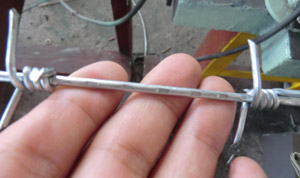

Finished products:

rezor barbed wire
Razor barbed wire
