Fence PVC Coating Line:

This Powder Coating Line is used to provide an anti-corrosive surface treatment for mesh fence, wire mesh fence, perforated metal mesh, mesh sheet, expanded metal mesh fence, fence sheet, fence mesh, isolated gate and matched posts. As one kind of safety security, the finished products are great to be fencing for highway, railway, airport and so on.
Main technical parameters:
(1) Max. size of mesh fence: 4000mm long * 2500mm wide
(2) Coating speed: 40~60 sheets per hour
(3) Power consumption: installed capacity 60kw, average power 50kw
(4) Oil consumption: 2200-3000m3/24h
(5) Water consumption: 0.6 -1.2 m3/h (circulating water)
(6) Plant request size(L*W*H): ≥ 50000mm *14000mm * 5000mm
Process flow:
Manual feeding - Pre-heating - Auto powder immersion - Curing - Coated workpiece cooling - Manual discharging - Manual shaping correction - Quality control - Final package
Composition of a complete coating line:
(1) Auto eletrical pre-heating & curing furnace;
(2) Auto coating powder up-and-down device, vibration generator, fluidized bed;
(3) Hanging delivery system, special hanger for workpiece;
(4) Power supply control equipment, auto program control.

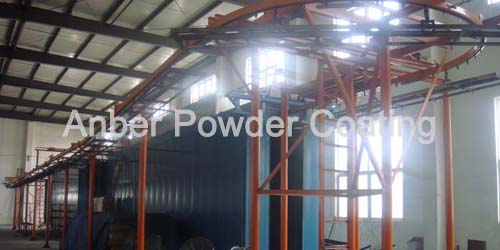

Fence PVC coating line Fluidized bed fence coating line Fence mesh fluidized bed coating line Powder dip-coating line

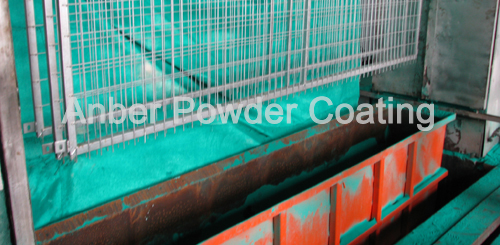

Fence PVC coating line Fluidized bed fence coating line Fence mesh fluidized bed
coating line

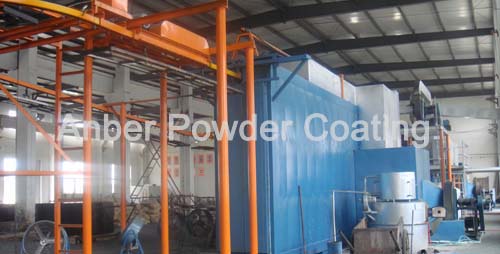

Powder dip-coating line

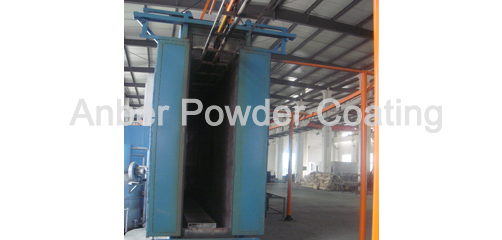

Fluidized bed powder coating line Fence sheet powder coating line Powder dip-coating line Layout of Fence PVC coating line
Fluidized bed powder coating line Fence sheet powder coating line Conveyer for mesh fluidized
bed coating line

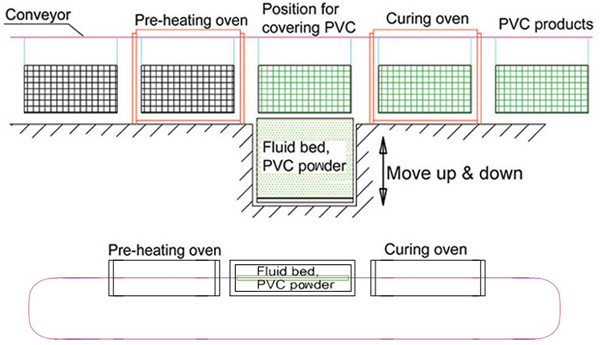

Layout of Fence PVC coating line
