Stainless Steel Wire Mesh:

Stainless Steel Wire Mesh can be divided into Stainless Steel Wire Mesh Square Opening and Stainless Steel Wire Mesh Dutch Weave according to weaving types, while Square Opening Stainless Steel Wire Mesh can be further divided into square wire mesh plain weave and square wire mesh twill weave.

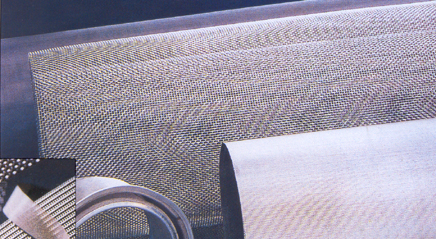

Stainless Steel Wire Mesh Square Opening usually refers to woven stainless steel wire mesh, in Plain Weave or Twill Weave patterns.

Standard mesh counts per inch for stainless steel wire mesh with square opening:

2mesh/3mesh/4mesh/7mesh/10mesh/12mesh/16mesh /18mesh/20mesh/24mesh/30mesh/35mesh/40mesh/50mesh/60mesh/70mesh/
80mesh/90mesh/100mesh/120mesh/150mesh/180mesh/200mesh/250mesh/300mesh/325mesh/350mesh/400mesh/450mesh/500mesh

Technical Note:

Standard width of stainless steel wire mesh: 1m or 48"; stainless steel wire mesh with extra roll width of 4m also available.
Standard roll length of stainless steel wire mesh: 30m or 100'.

stainless steel wire mesh
Stainless steel wire mesh

Mesh Wire Dia. (mm) Opening (mm) Material (AISI) Mesh Wire Dia. (mm) Opening (mm) Material (AISI)
2x2 1.8 10.9 304 or316 70x70 0.12 0.24 304 or316
3x3 1.5 6.96 304 or316 80x80 0.13 0.19 304 or316
4x4 1.0 5.35 304 or316 90x90 0.12 0.16 304 or316
7x7 1.00 2.63 304 or316 100x100 0.10 0.15 304 or316
10x10 0.60 1.94 304 or316 120x120 0.09 0.12 304 or316
12x12 0.50 1.62 304 or316 150x150 0.063 0.11 304 or316
16x16 0.40 1.19 304 or316 180x180 0.053 0.09 304 or316
16x16 0.35 1.24 304 or316 200x200 0.053 0.07 304 or316
18x18 0.35 1.06 304 or316 250x250 0.040 0.063 316
20x20 0.40 0.87 304 or316 300x300 0.040 0.044 316
24x24 0.26 0.80 304 or316 325x325 0.035 0.043 316L
30x30 0.30 0.55 304 or316 350x350 0.030 0.042 316L
35x35 0.17 0.56 304 or316 400x400 0.030 0.033 316L
40x40 0.23 0.40 304 or316 450x450 0.028 0.028 316L
50x50 0.20 0.31 304 or316 500x500 0.025 0.026 316L
60x60 0.15 0.27 304 or316
